LAIWA OPTICAL WATER METER READER

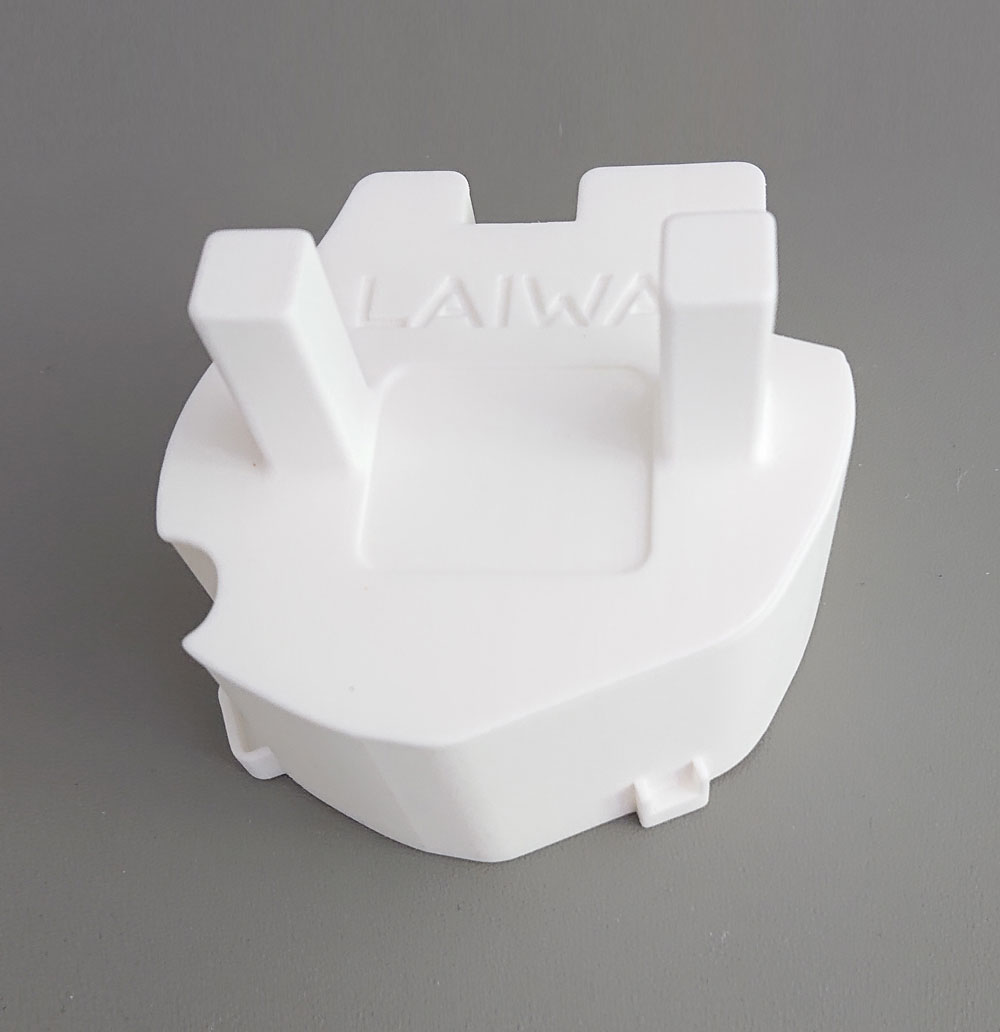

Optical Water Meter Reader
LAIWA Optical Water Meter Reader automatically collects meter readings from legacy water meters, installs nonintrusive on the meter top and collects data with high accuracy and reliability at set intervals using optical reading with machine learning technology. The internal battery will last for more than ten years with normal usage.
The meter reader is equipped with different sensors to monitor the water consumption and status of the water meter with high accuracy and reliability, it automatically collects and stores the meter values and send them via the mobile connectivity to a cloud application or via local wireless networks. It monitors the water meter for flooding, low or high temperature and shock, vibration, or manipulation.
The meter readers can work autonomously or in clusters of meter readers with local network sharing one mobile data connection. Its IP68 proof enclosure resists dust and water intrusion.
The Laiwa Optical meter Reader enables smart metering functionality for legacy utility meters without requiring a full-scale replacement of existing meters.
Key Facts
- Installs nonintrusive on legacy water meters
- High accuracy robust machine learning technology
- Large internal data memory for meter data
- Relays an actual image of the meter register on demand
- Cloud connectivity through mobile narrowband, NB-IoT
- Local wireless connectivity, Zigbee, BT and Thread
- High resolution, up to 1 sample per minute
- Battery-powered with more than 10-year lifespan
- Ambient temperature monitoring
- Flood detection, alarm indication if water presence around the meter
- Certification for IP68, CE, EMC
- Fraud detection
- Leakage detection
- Intrusion and theft monitoring
Key Data
Mobile radio
NB-IoT
Local wireless radio
2.4GHz and 868/915MHz
Supported mobile protocols
UDP, TCP, M2M, CoAP
Supported wireless protocols
Zigbee mesh, Thread and Bluetooth
Weight
125g
Size (l x p x h)
80 x 80 x 60
Working temperature
-20 - +80°C
Protection class
IP68
Certification
CE, EMC
Battery
non replaceable lithium battery, >10 year lifetime
Measured data
Absolute meter consumption (volume)
Ambient temperature
-20 - +80°C
Alarms
- Flood warning, water presence
- Tamper, movement warning
- Leakage detection
- High/Low Temperature (Freeze alarm).
Tab #1
Tab #2
Tab #3
Tab #1
Calibration certificate
At the customer’s request, each Efento sensor can be supplied with a calibration certificate in accordance with ISO / IEC 17025. The test is performed in an external, ILAC certified laboratory. The calibration date is saved in the logger memory and it notifies the user about the suggested date of the next calibration.
Data security
Data transmitted wirelessly between the sensor and smartphone/Efento Gateway can be encrypted. Thanks to that, unauthorized persons cannot hijack the communication between sensors and other devices. Efento sensors’ software can be updated over the air, which will allow you to easily install any security patch that is released.
Integration
We believe that the Internet of Things is about integrating data sources, analysing the data and drawing conclusions based on it. If you want to integrate Efento loggers with your software, cloud platform or mobile application, we will provide you with the necessary documentation, libraries, SDKs and we will gladly assist you.
Tab #2
The Optical Meter Reader installs easily and quckly on conventional meters. It optically reads the meter at set intervals.
Tab #3
The Optical Meter Reader installs easily and quckly on conventional meters. It optically reads the meter at set intervals.
Monitoring system without subscription fees.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
Our customers
Contact us
Follow us
Optical automatic meter reading
Laiwa Metering provide a complete solution for Utility and Sub Meter Reading with Optical Readers for legacy utility meters. The Optical Meter Readers are connected through low power wireless networks and can easily be deployed on existing meter infrastructure. Data from the optical sensors and mobile apps are visible on the cloud platform in real time. The Laiwa IoT Cloud platform provides visibility, reporting, powerful analytics and easy integration. The system provides full user account management, device management of connected meter readers and apps. Graphical displays and control panels provides immediate insight in real time data as well as analysis and reports on historical data. The system integrates seamlessy with existing metering, billing and management systems.
